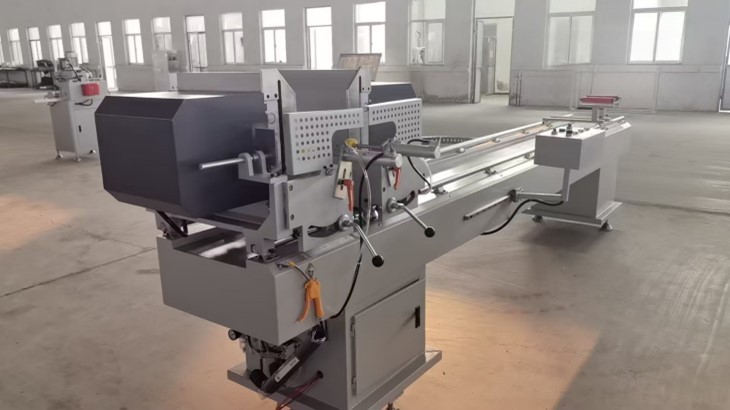

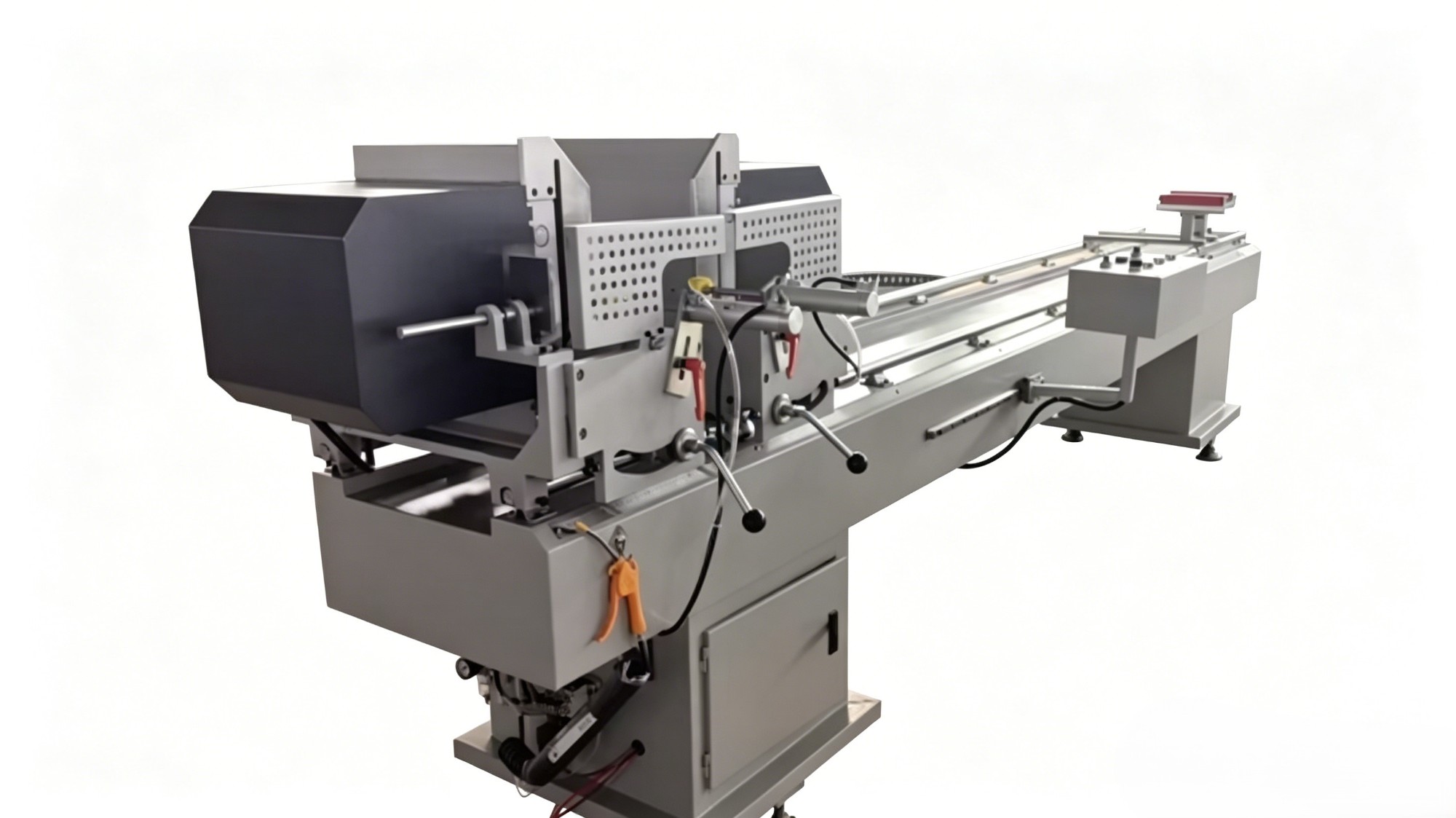

LJB4-420×3500 Double-Angle Cutting Saw for Plastic Doors and Windows

                                                         LJB4-420×3500 Double-Angle Cutting Saw for Plastic Doors and Windows

Product Description

This machine is used for 45°–90° cutting of aluminum alloy and plastic profiles.It adopts pneumatic transmission and linear parallel feeding, ensuring stable feeding and high positioning accuracy.The machine features compact structure, good system rigidity, simple operation, and high production efficiency.

Technical Parameters

· Working air pressure: 0.5–0.8 MPa

· Power supply: 380 V/50 Hz

· Input power: 2×1.5 kW

· Spindle speed: 2800 r/min

· Saw blade specification: Φ400×Φ30

· Cutting height: 200 mm

· Cutting width: 100 mm

· Cutting length: 400–4200 mm

· Overall dimensions: 4000×900×1500 mm
