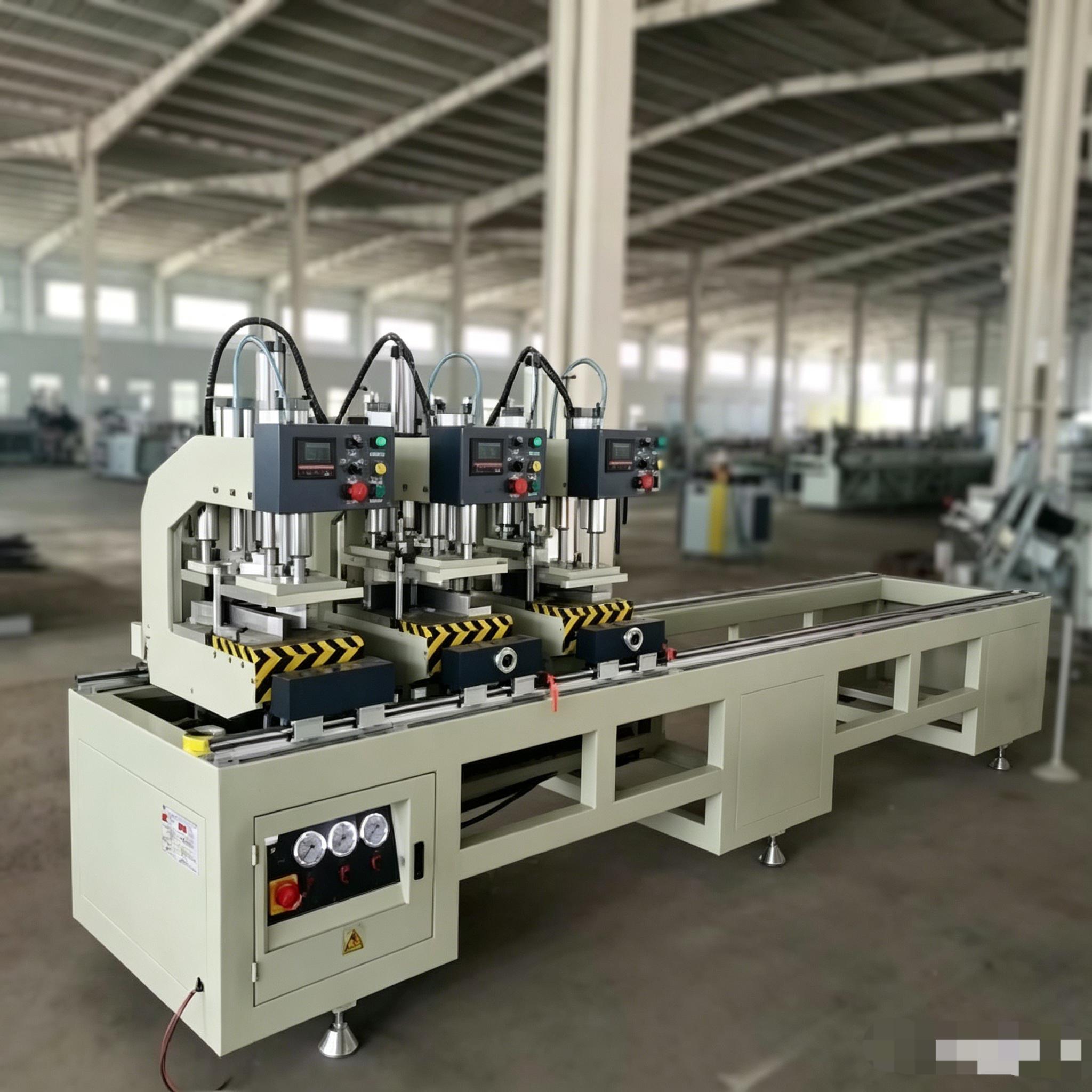

SHZW4-140×4500 Plastic Door & Window Four-point Welding Machine

Features

Through the control and pneumatic systems, an enhanced welding strength processing mode is adopted. Particularly in the software control of heating, melting-welding gap, and butt-welding processes, it ensures maximum welding strength under various environmental conditions and allows quantitative adjustment via digital parameters.

Main Technical Parameters

· Working air pressure: 0.6～0.8 MPa

· Power supply: 220 V 50 Hz

· Air consumption: 200 L/min

· Input power: 4.5 kW

· Welding profile length: 400～4500 mm

· Welding profile height: 20～120 mm

· Welding profile width: max. 120 mm

· Overall dimensions: 5300×1000×1700 mm

· Weight: 1200 kg
