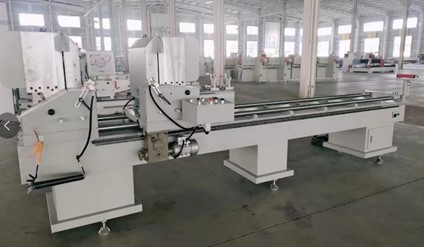

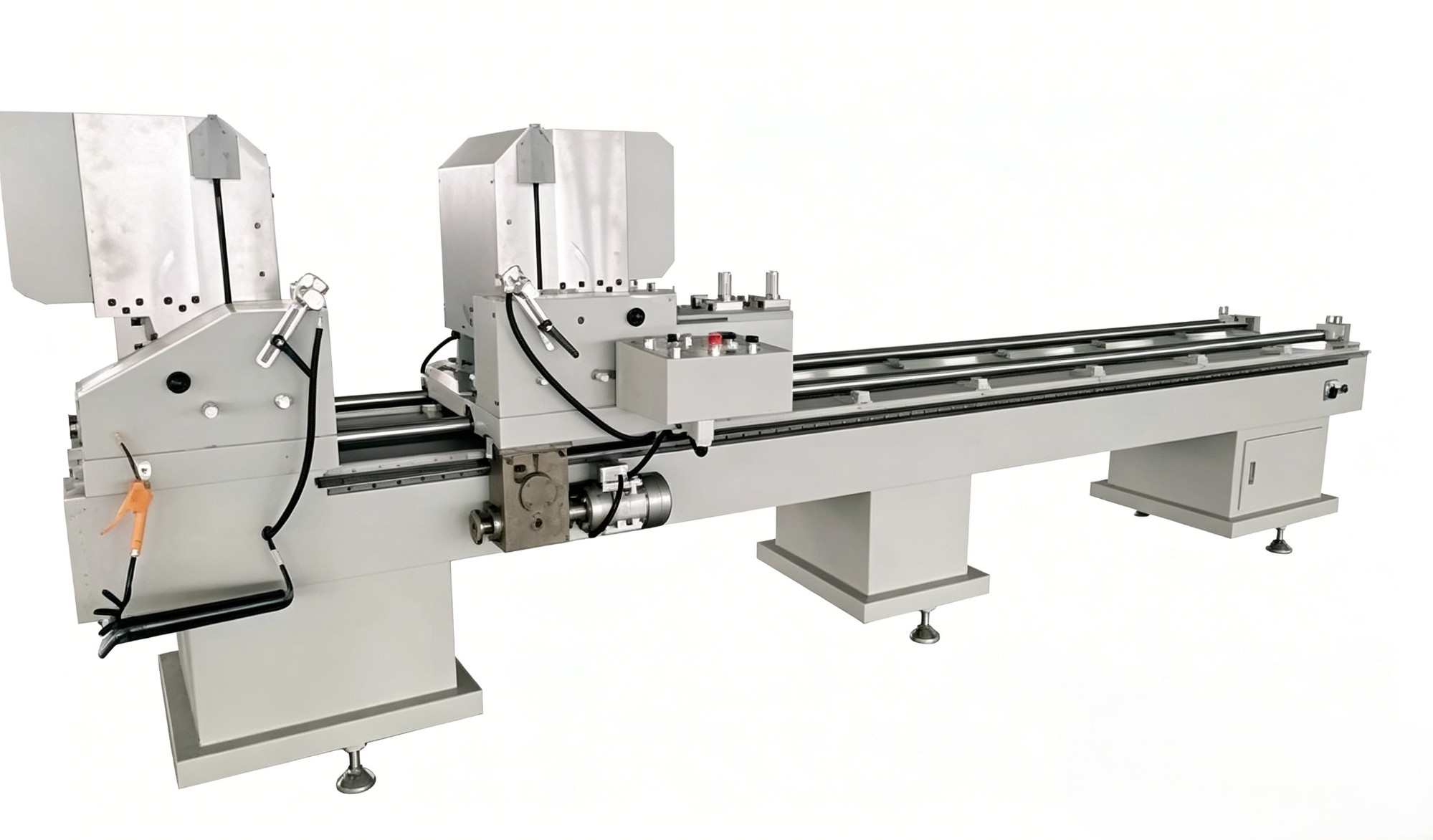

SJ06-3700 Double-Angle Saw for Aluminum-Plastic Doors and Windows

SJ06-3700 Double-Angle Saw for Aluminum-Plastic Doors and Windows

Product Description

This machine is used for 45°–90° cutting of aluminum alloy and plastic profiles.It adopts pneumatic transmission and linear parallel feeding, ensuring stable feeding and high positioning accuracy.The machine features compact structure, good system rigidity, simple operation, and high production efficiency.

Technical Parameters

· Working air pressure: 0.5–0.8 MPa

· Power supply: 380 V/50 Hz

· Input power: 2×1.5 kW

· Spindle speed: 2800 r/min

· Saw blade specification: Φ450×Φ30

· Cutting height: 210 mm

· Cutting width: 190 mm

· Cutting length: 400–4200 mm

· Overall dimensions: 4700×900×1500 mm
