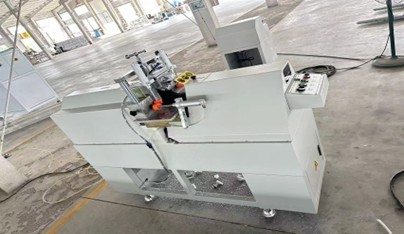

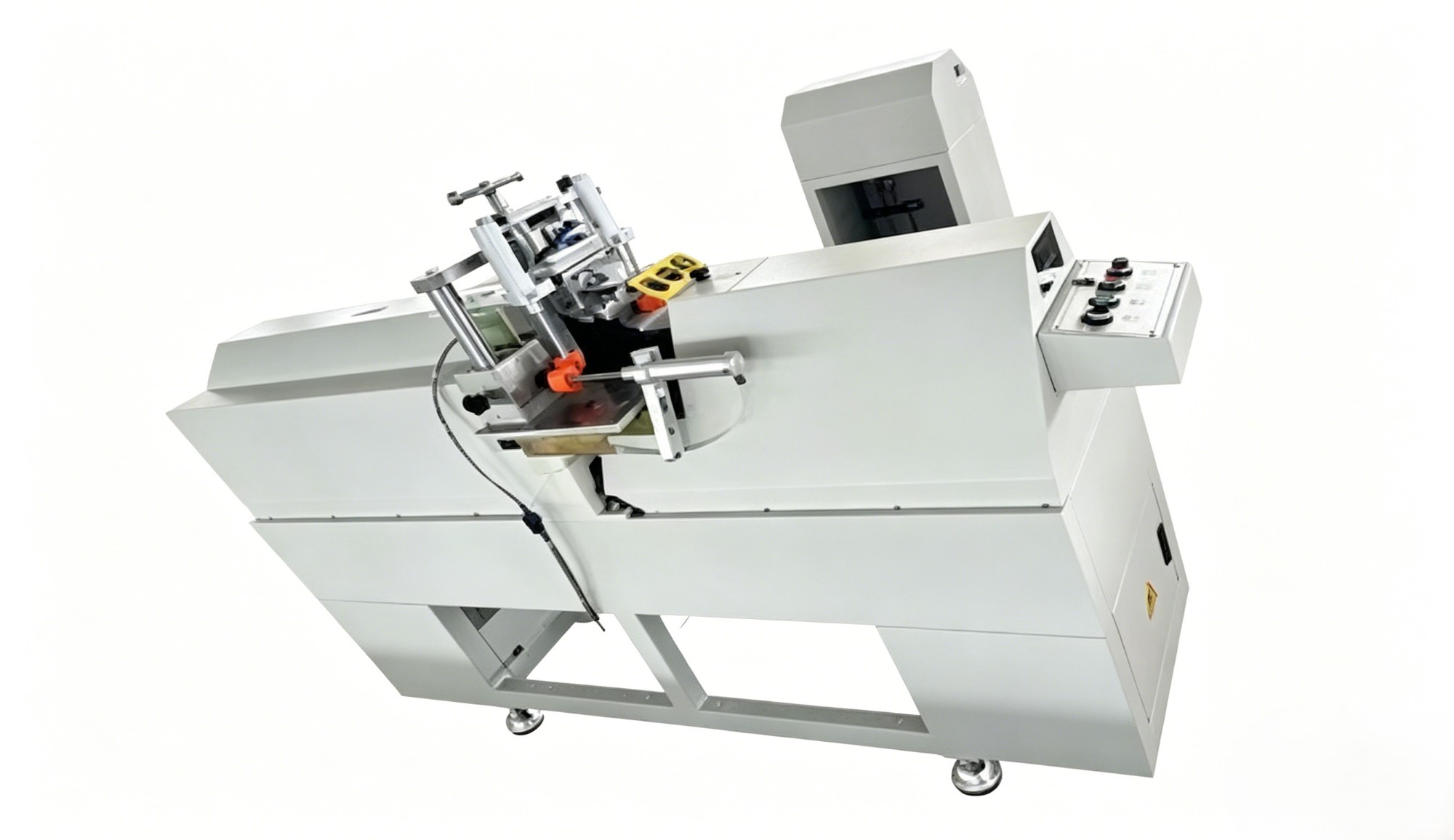

Middle Mullion Saw

Middle Mullion Saw

This machine is used for cutting 90° V-notches on aluminum-plastic profiles. It features simple operation and long service life.

Technical Parameters

· Working air pressure: 0.4–0.6 MPa

· Power supply: 380 V 50 Hz

· Air consumption: 80 L/min

· Input power: 2.2 kW

· V-notch depth: max. 65 mm

· Cutting positioning length: 300–1700 mm

· Overall dimensions: 1350×500×1350 mm

· Weight: 200 kg
