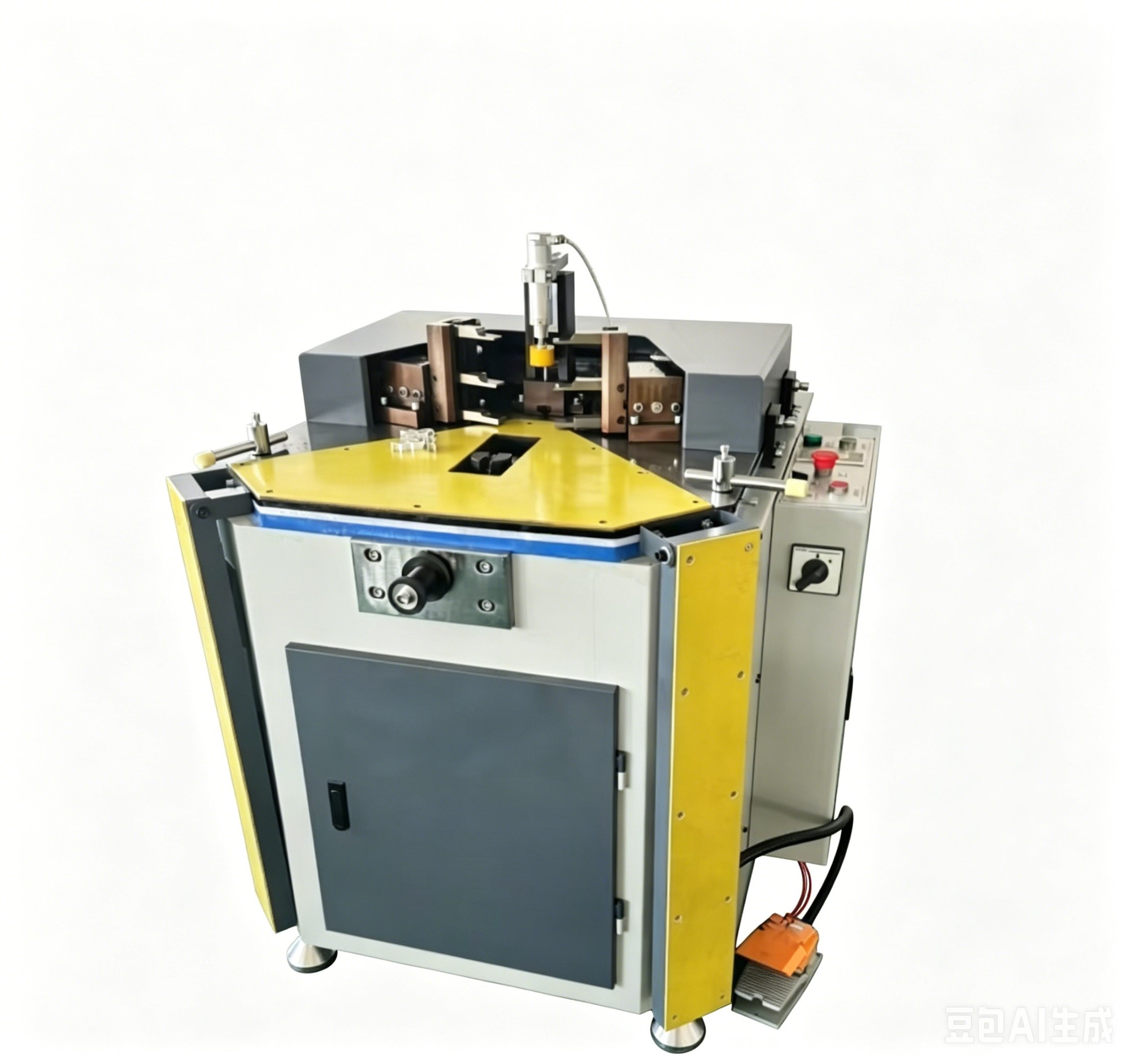

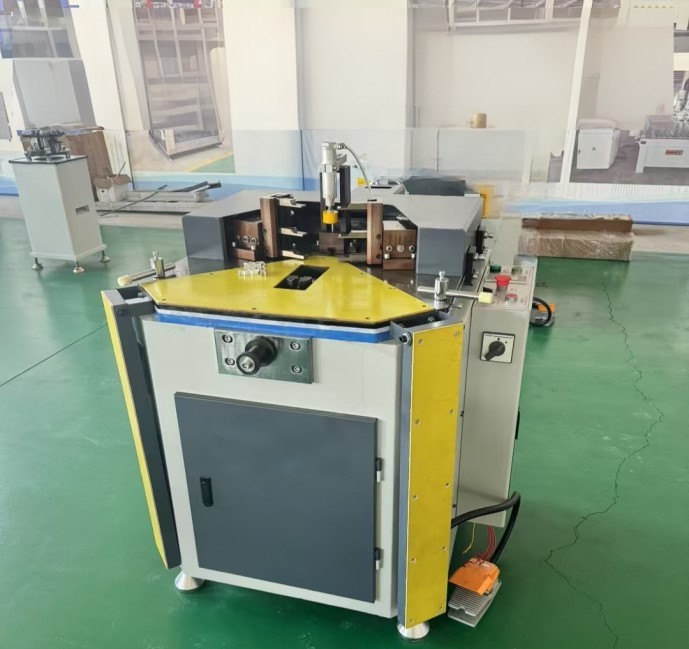

LJJ-140 Heavy-Duty Lifting Corner Combining Machine

                                                       LJJ-140 Heavy-Duty Lifting Corner Combining Machine

Product Description

Designed according to the characteristics of corner connectors, with enlarged size and impact force, it provides firmer extrusion and higher performance. It is especially suitable for corner combining of thermal insulation profiles, door frames, and ultra-thick curtain wall profiles.

Technical Parameters

· Power supply: 380 V 50 Hz

· Power: 3 kW

· Working pressure: 0.6–0.8 MPa

· Air consumption: 2 L/min

· Oil tank capacity: 20 L

· Processing profile height: 140 mm

· Minimum assembled frame size: 480×480 mm

· Suitable profile width: 90 mm

· Air supply working pressure: 0.5～0.8 MPa

· Overall dimensions: 1200×1100×1500 mm
