HJ2-120×960 Single-Head Welding Machine

HJ2-120×960 Single-Head Welding Machine

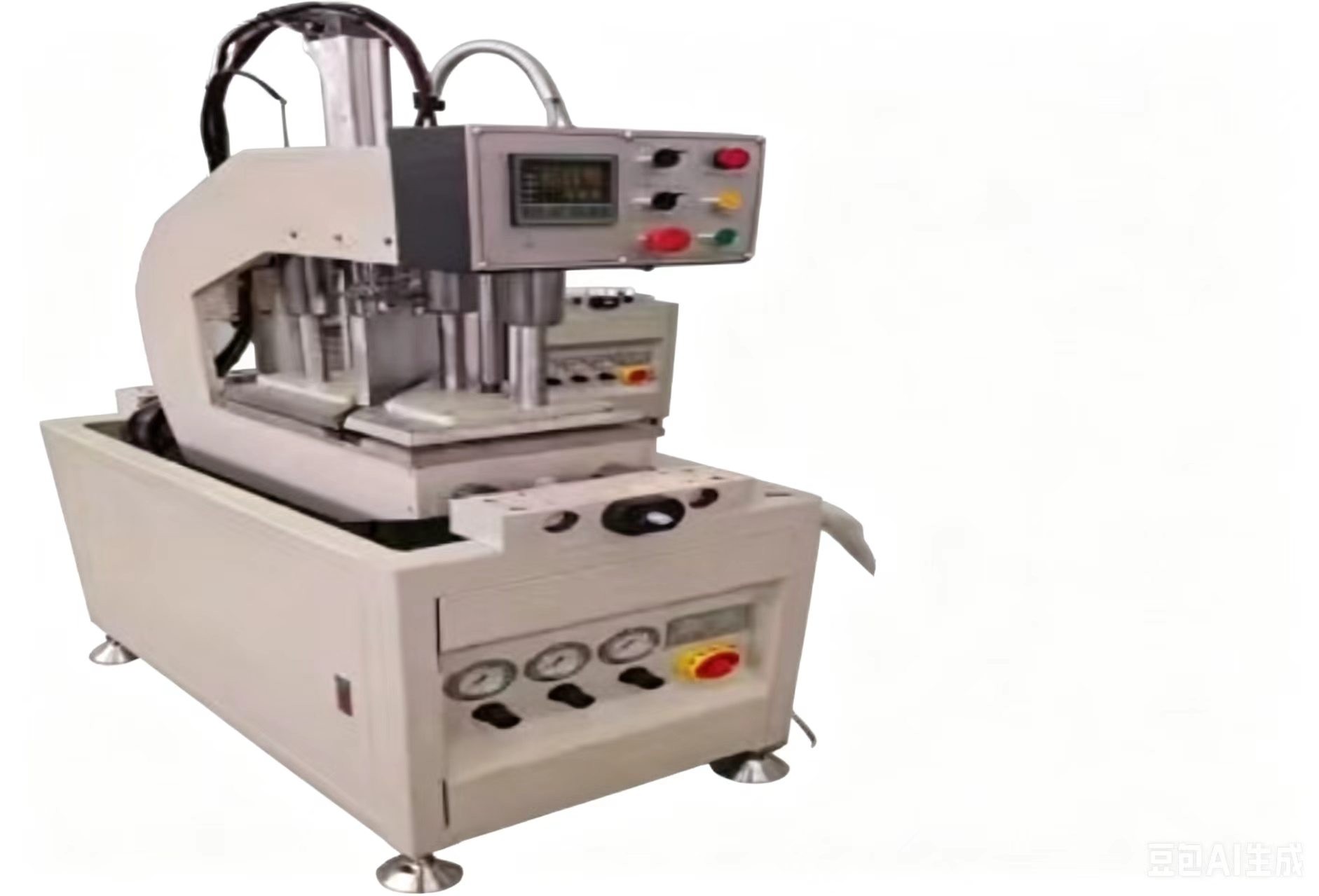

This plastic door and window single-head welding machine consists of a welding head, frame, electric control cabinet, etc. The welding head is equipped with a positioning mechanism, clamping mechanism, and heating mechanism.

It is auxiliary equipment for processing plastic doors and windows, capable of independently welding special-shaped welding corners of plastic doors and windows. The machine features program control, pneumatic transmission, simple operation, and convenient maintenance.

Technical Parameters

· Working air pressure: 0.5–0.8 MPa

· Air consumption: 50 L/min

· Power supply: 220 V/50 Hz

· Input power: 1.2 kW

· Welding profile height: 20–100 mm

· Welding profile width: ≤120 mm

· Overall dimensions: 960×900×1460 mm

· Weight (approx.): 260 kg
