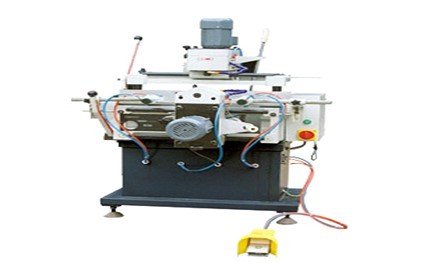

LFX-290×90 Double-Spindle Copy Router for Aluminum-Plastic Doors and Windows

LFX-290×90 Double-Spindle Copy Router for Aluminum-Plastic Doors and Windows

Function Description

This machine is specially used for processing various holes and slots on aluminum-plastic profiles, such as drainage slots, pulley slots, lock holes, and hardware holes. By changing different copy templates, it can process holes and slots of different shapes.It adopts high-speed cutting (12000 r/min) and pneumatic clamping. Continuous machining in vertical and horizontal directions can be realized with one clamping, featuring high working efficiency, stable and reliable performance.

Technical Parameters

· Working air pressure: 0.4–0.6 MPa

· Air consumption: 30 L/min

· Power supply: 380 V 50 Hz

· Input power: 2×0.75 kW

· Copying range: 290×90 mm

· Horizontal range: 300×100 mm

· Milling cutter diameter: φ5, φ8

· Overall dimensions: 1000×1130×1500 mm

· Weight: 280 kg
