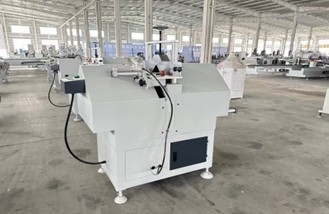

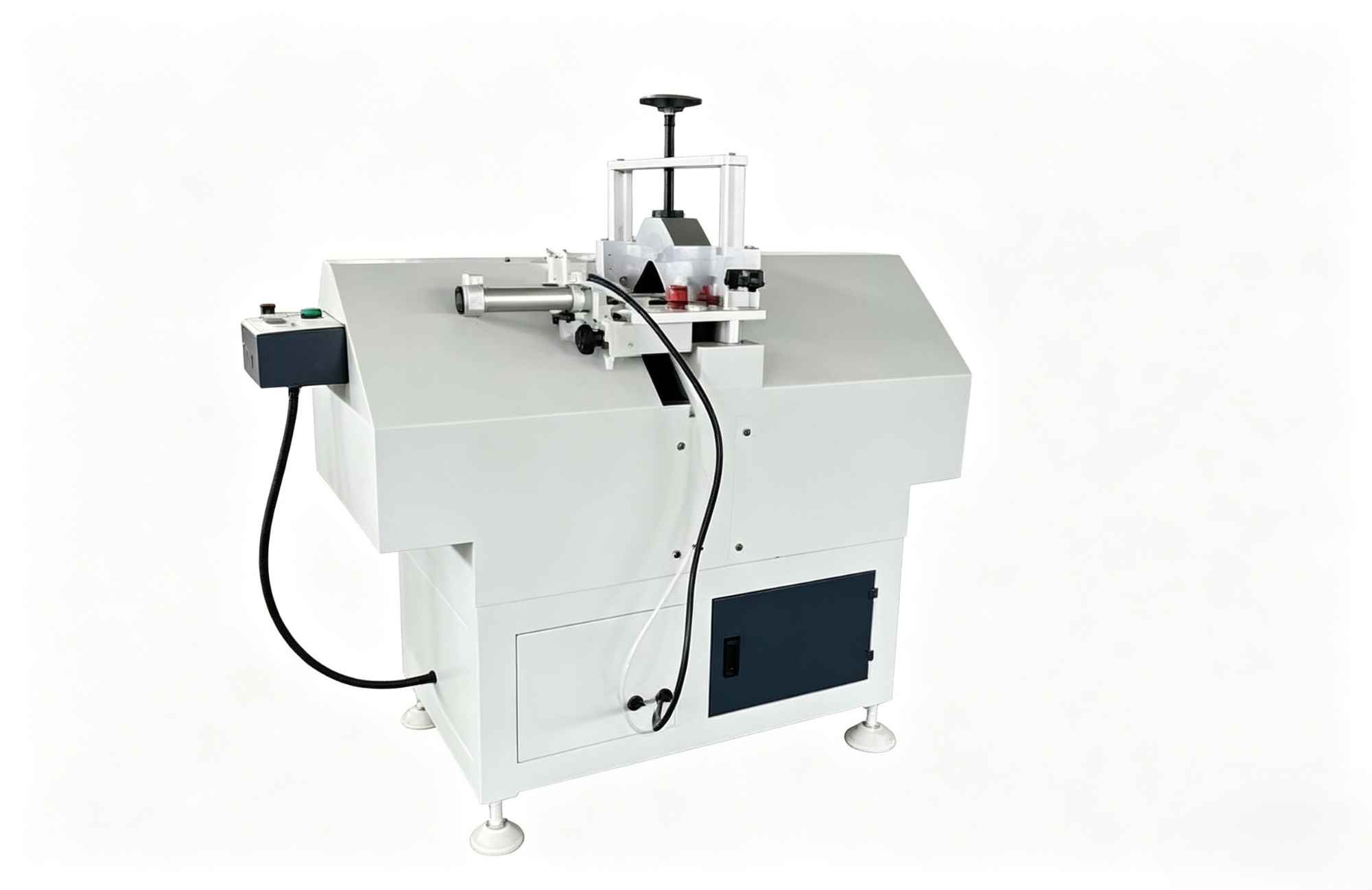

VJ02-65 V-Notch Cutting Saw for Aluminum-Plastic Profiles

VJ02-65 V-Notch Cutting Saw for Aluminum-Plastic Profiles

Product Description

This machine is used for cutting 90° V-notches on aluminum-plastic door and window profiles.Profile clamping and cutting adopt pneumatic transmission, with simple operation, safety and reliability.It features accurate cutting dimensions and easy maintenance.Suitable for profile thickness 0–120 mm, one-time cutting completed.

Technical Parameters

· Working air pressure: 0.4–0.8 MPa

· Air consumption: 20 L/min

· Power supply: 380 V/50 Hz

· Input power: 1.5 kW

· Spindle speed: 2800 r/min

· Cutting height: 20–60 mm

· Cutting width: 120 mm

· Cutting length: 300–1700 mm

· Overall dimensions: 1350×500×1550 mm
