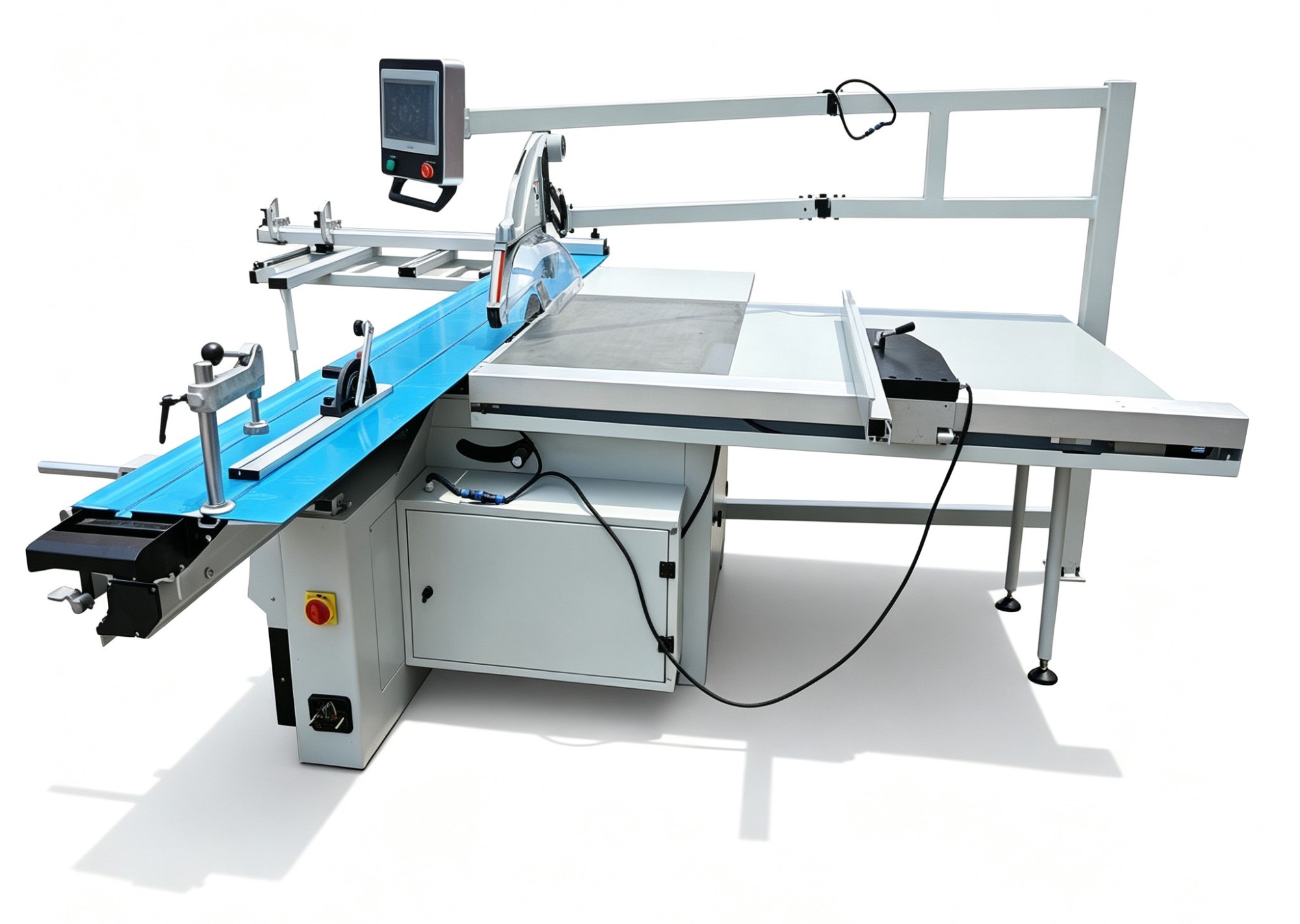

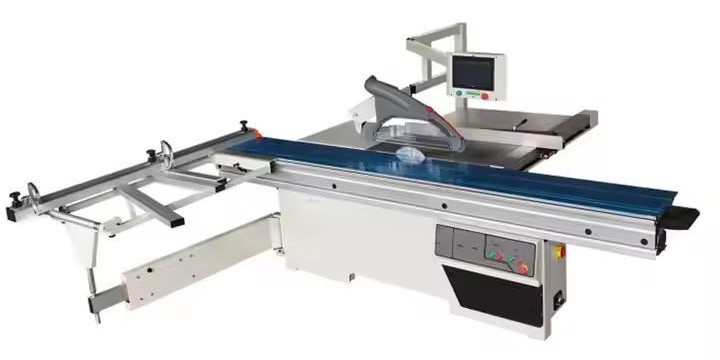

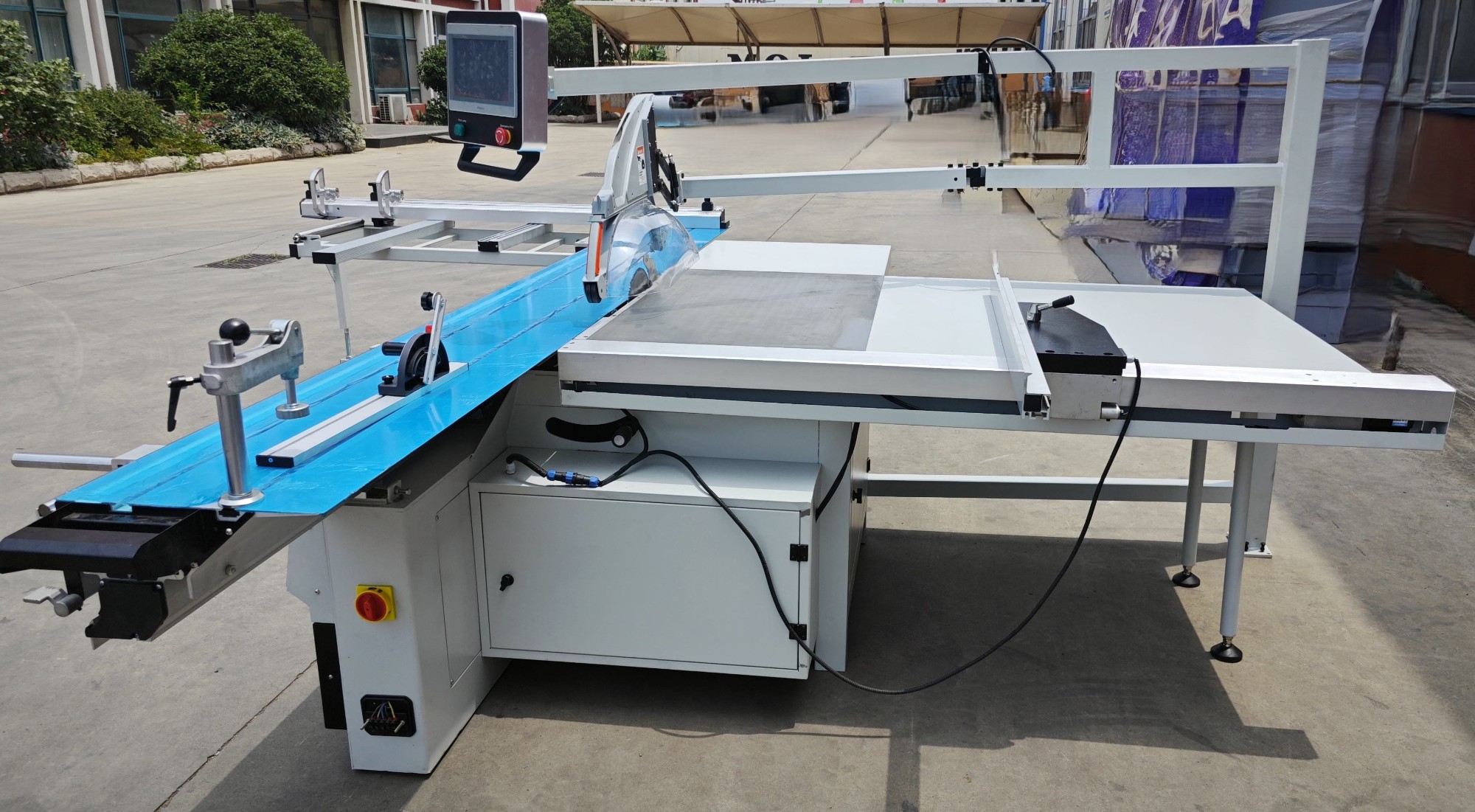

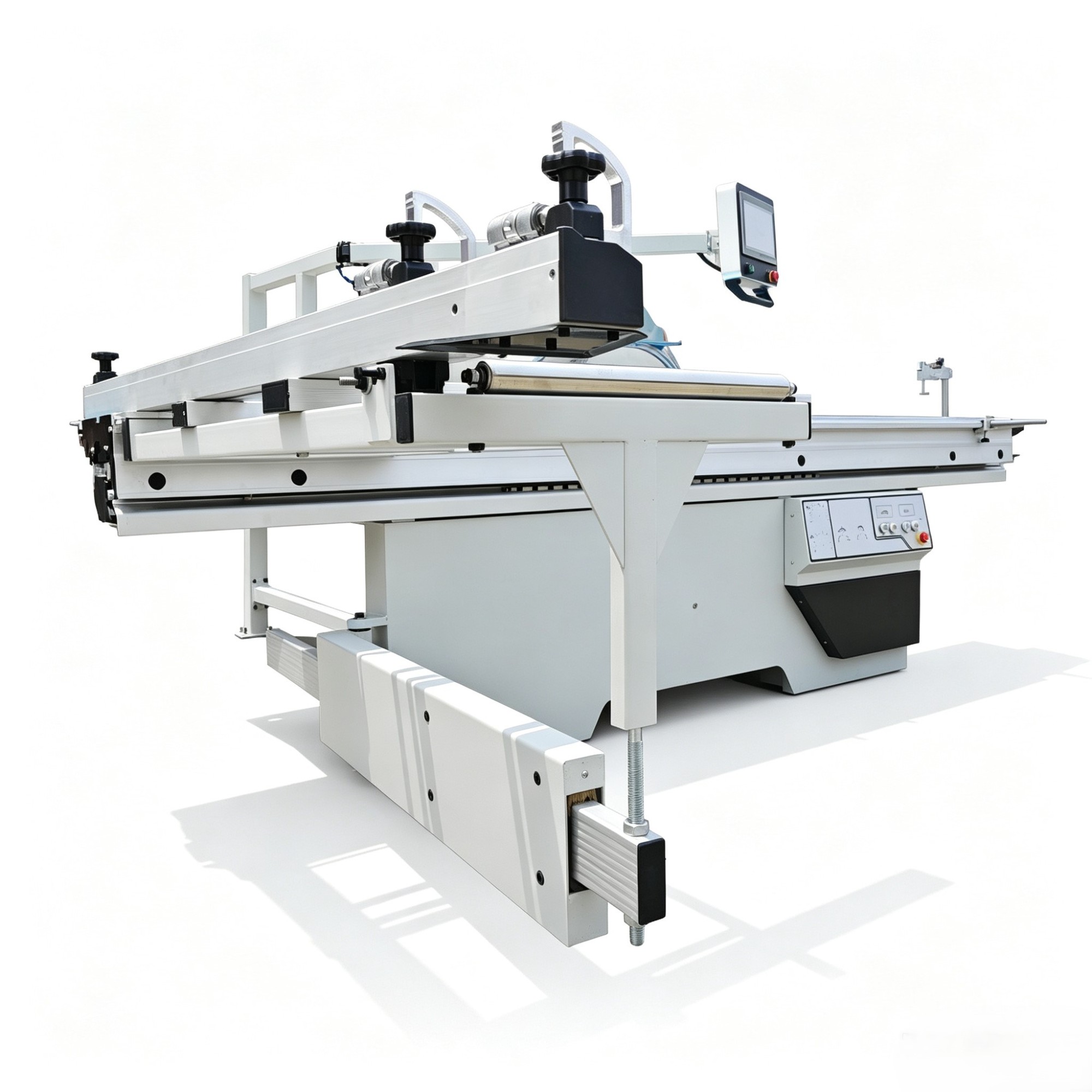

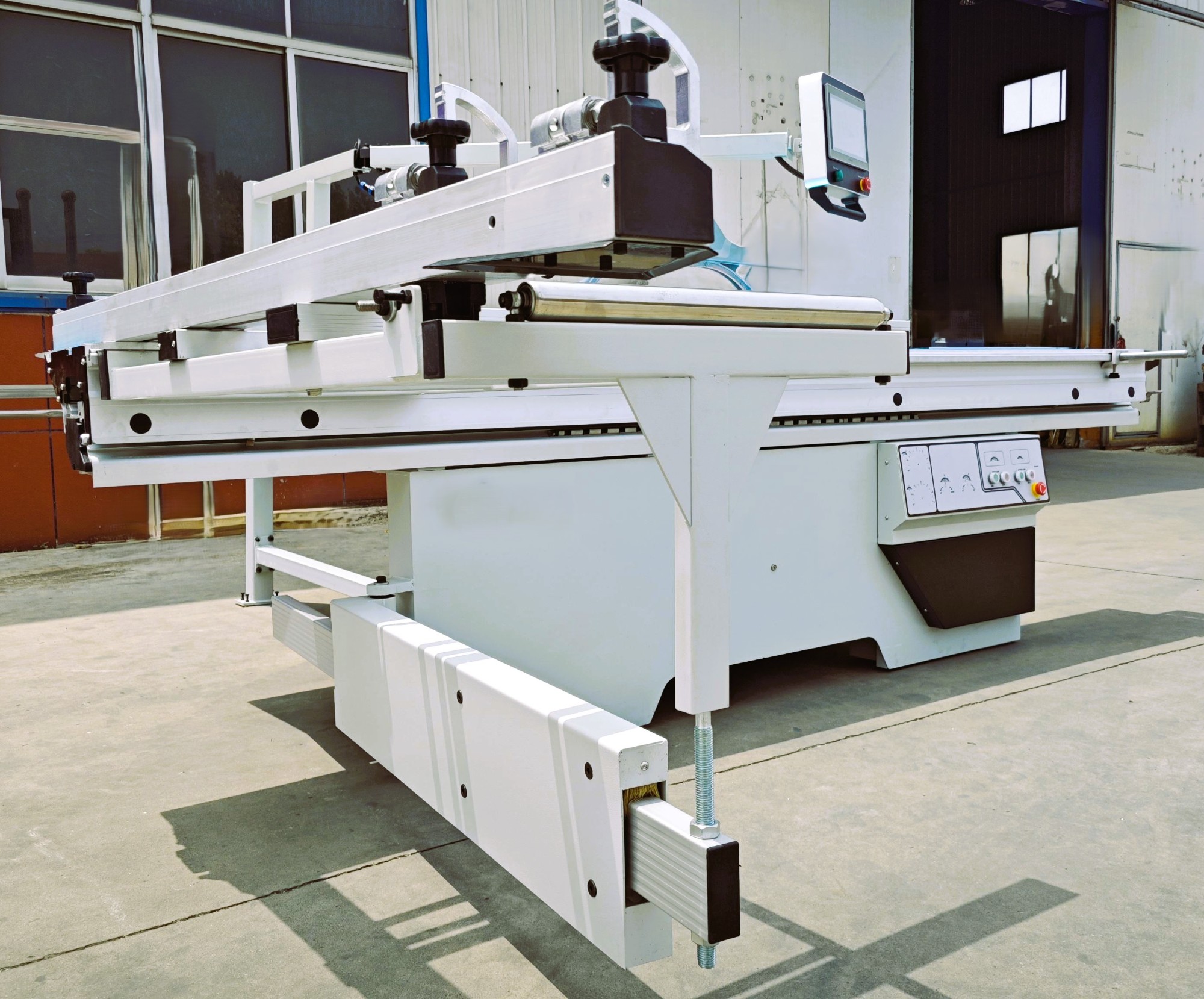

Automatic Computer Beam Saw Machine

type Saw

Automatic CNC Beam Saw

usage

Plywood Production

voltage

380V, 110V, 220V, 415V

Platform Dimensions

3000mm*1300mm

core components

Bearing,Motor,Pump,Gear,PLC,

Gearbox, Pressure Vessel

Material Type

Wood

warranty

1 Year

video outgoing-

inspection

Provided

key selling points

Easy To Operate

power (kw)

5.5

place of origin

Shandong, China

weight (kg)

800

dimension(l*w*h)

3250*425*290

Sliding table size

3200*375mm

Length of cut

3100mm

Height of cut

80mm

Main saw blade diameter

300mm

Scoring saw blade diameter

120mm

Main saw spindle speed

4000/6000rpm

Scoring saw spindle speed

7000rpm

Main saw motor

5.5kw

Scoring saw motor

0.75kw

Main saw blade tilting angle

45°-90°
