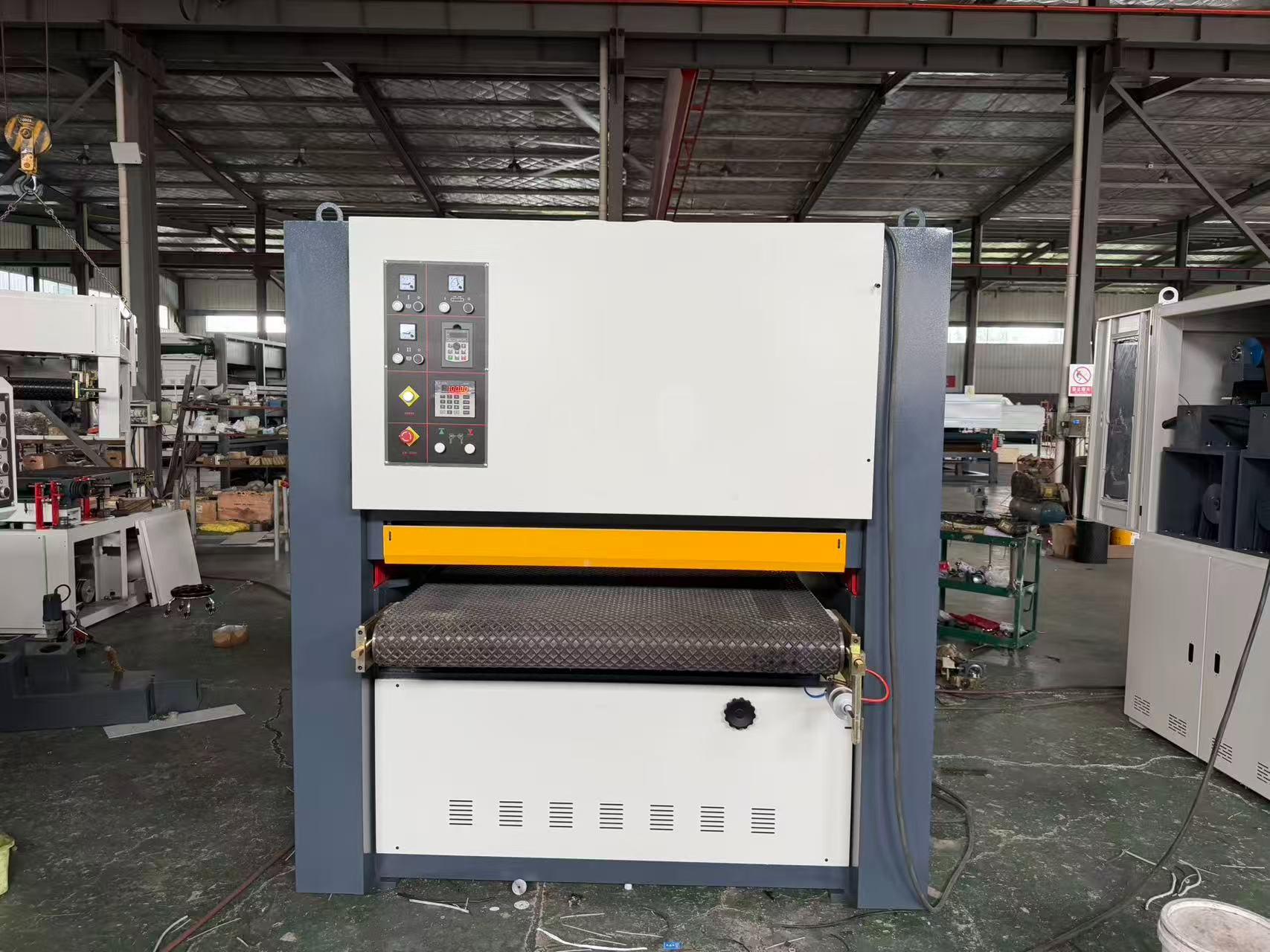

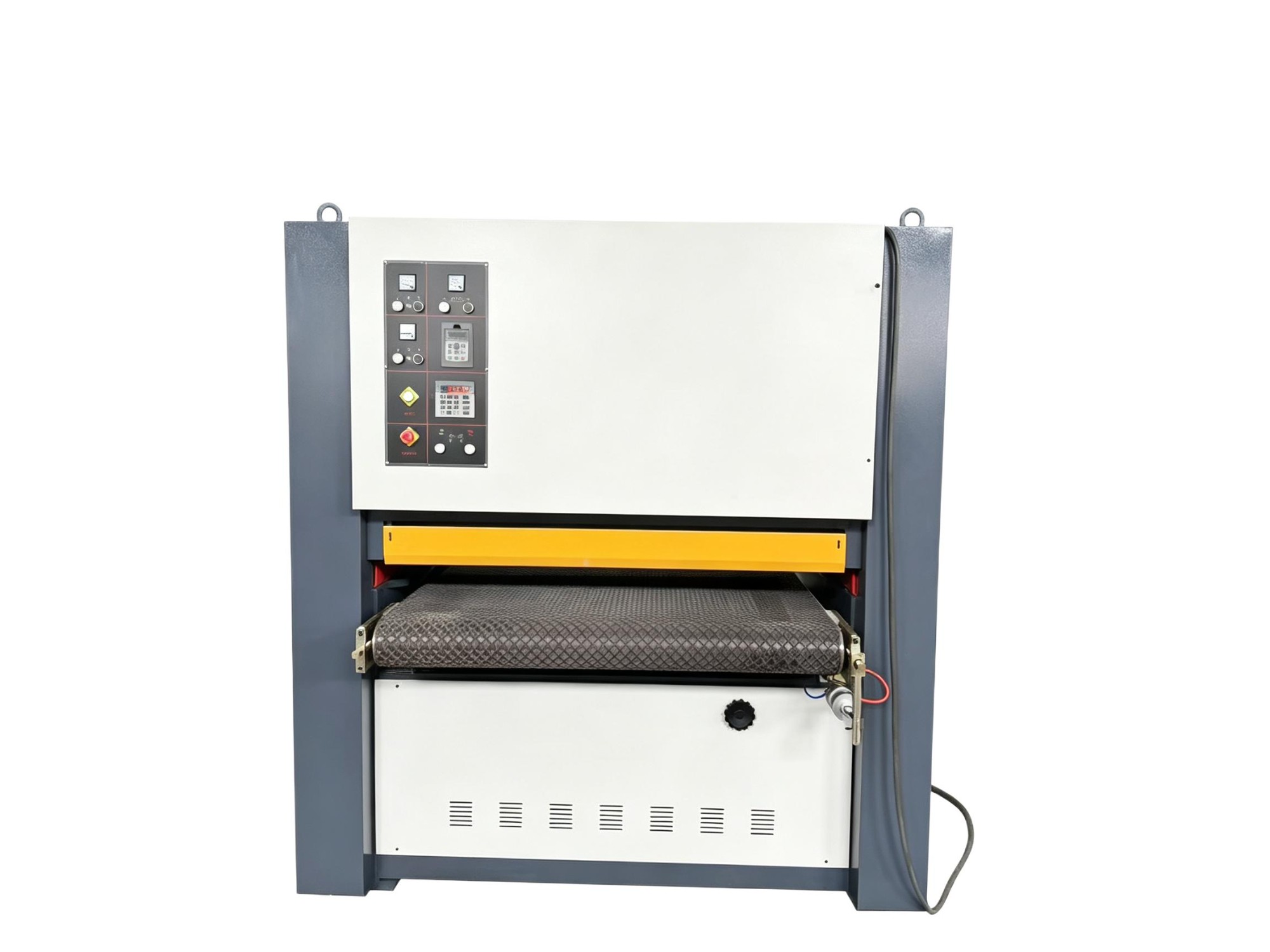

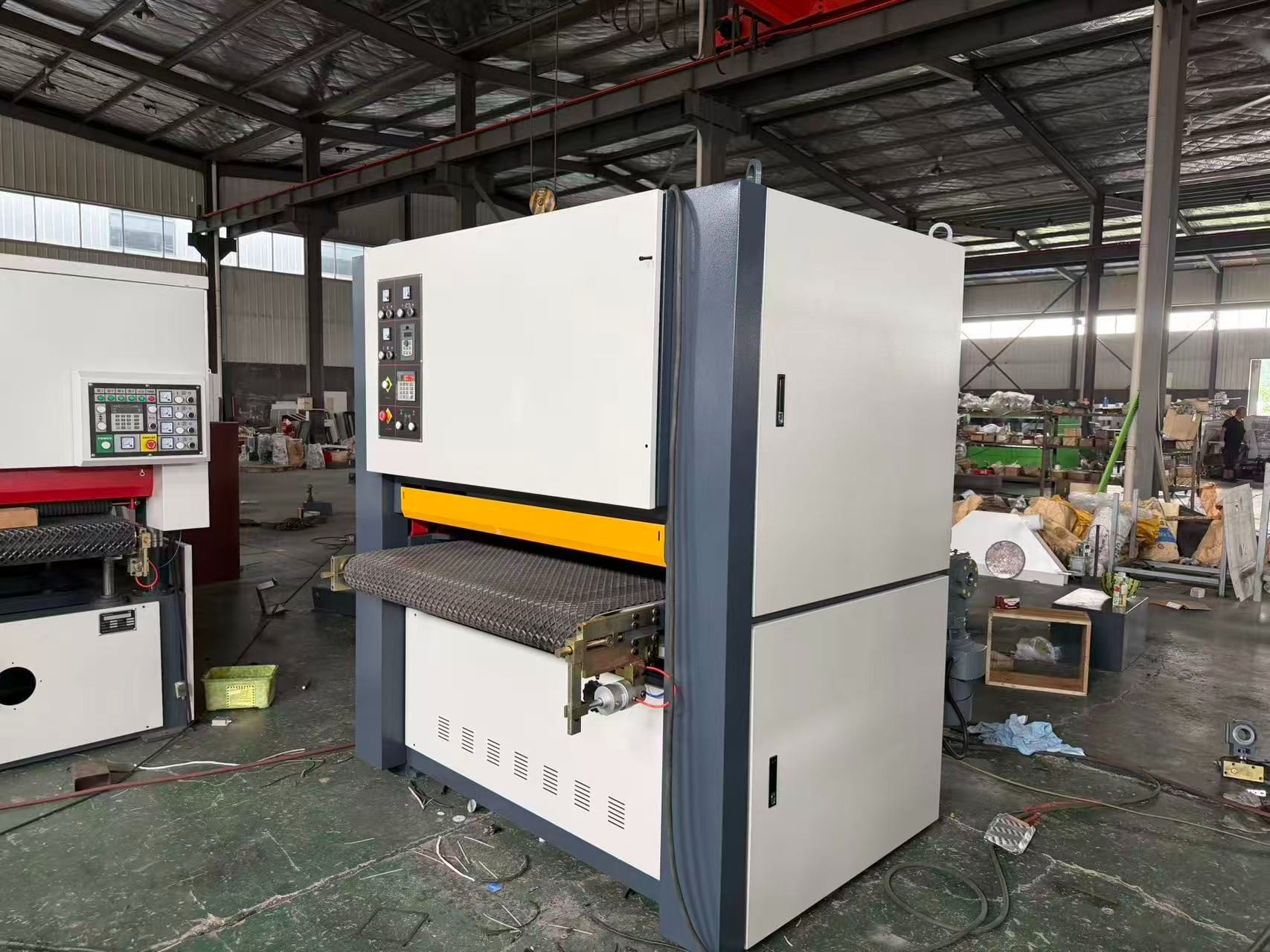

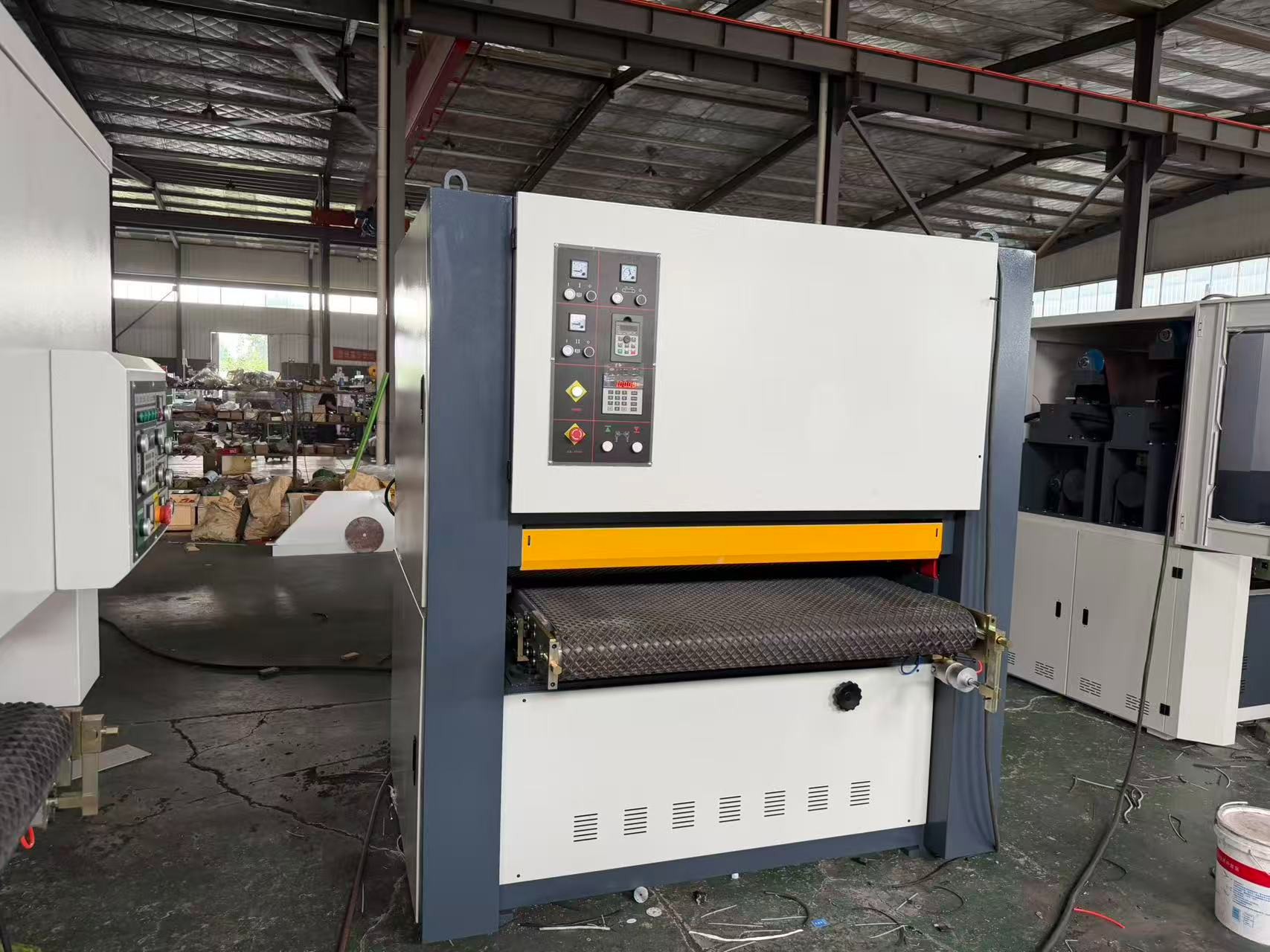

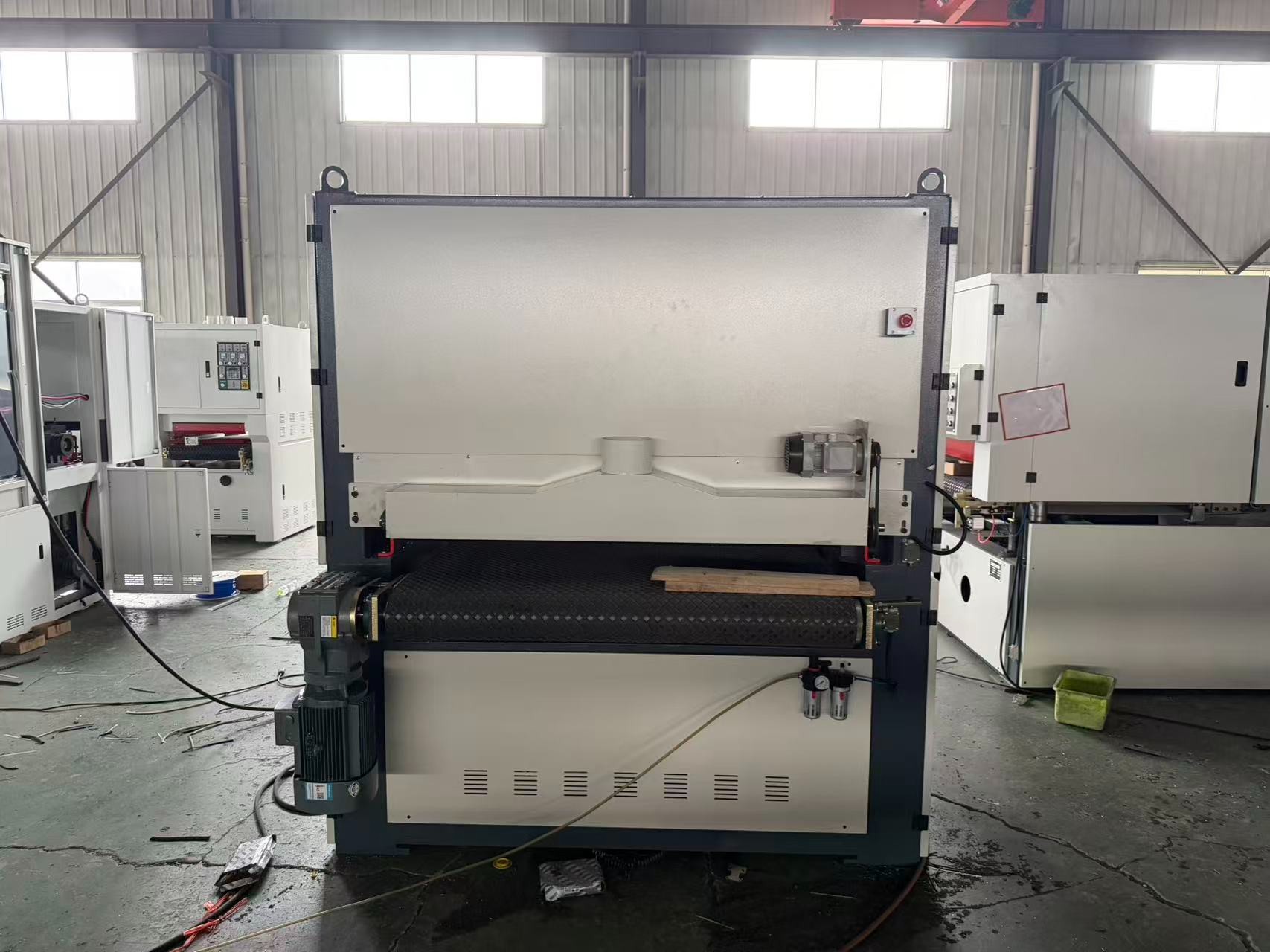

Model R-RP1300 Heavy-Duty Sanding Machine

Model R-RP1300 Heavy-Duty Sanding Machine

Machine Model: R-RP1300

1st Sanding Motor: 37kW (4-pole full copper motor)

2nd Sanding Motor: 22kW (4-pole national standard motor with full copper winding)

Conveyor Motor: 4kW (variable frequency speed regulation, national standard full copper winding motor)

Platform Lifting Motor: 0.55kW (national standard full copper winding motor)

Max. Processing Width of Workpiece: ≤1300 mm

Workpiece Processing Thickness Range: 2–110 mm

Min. Processing Length of Workpiece: ≥30 mm

Abrasive Belt Size: 2200×1320 mm

Machine Weight: 3600 kg

Machine Configuration

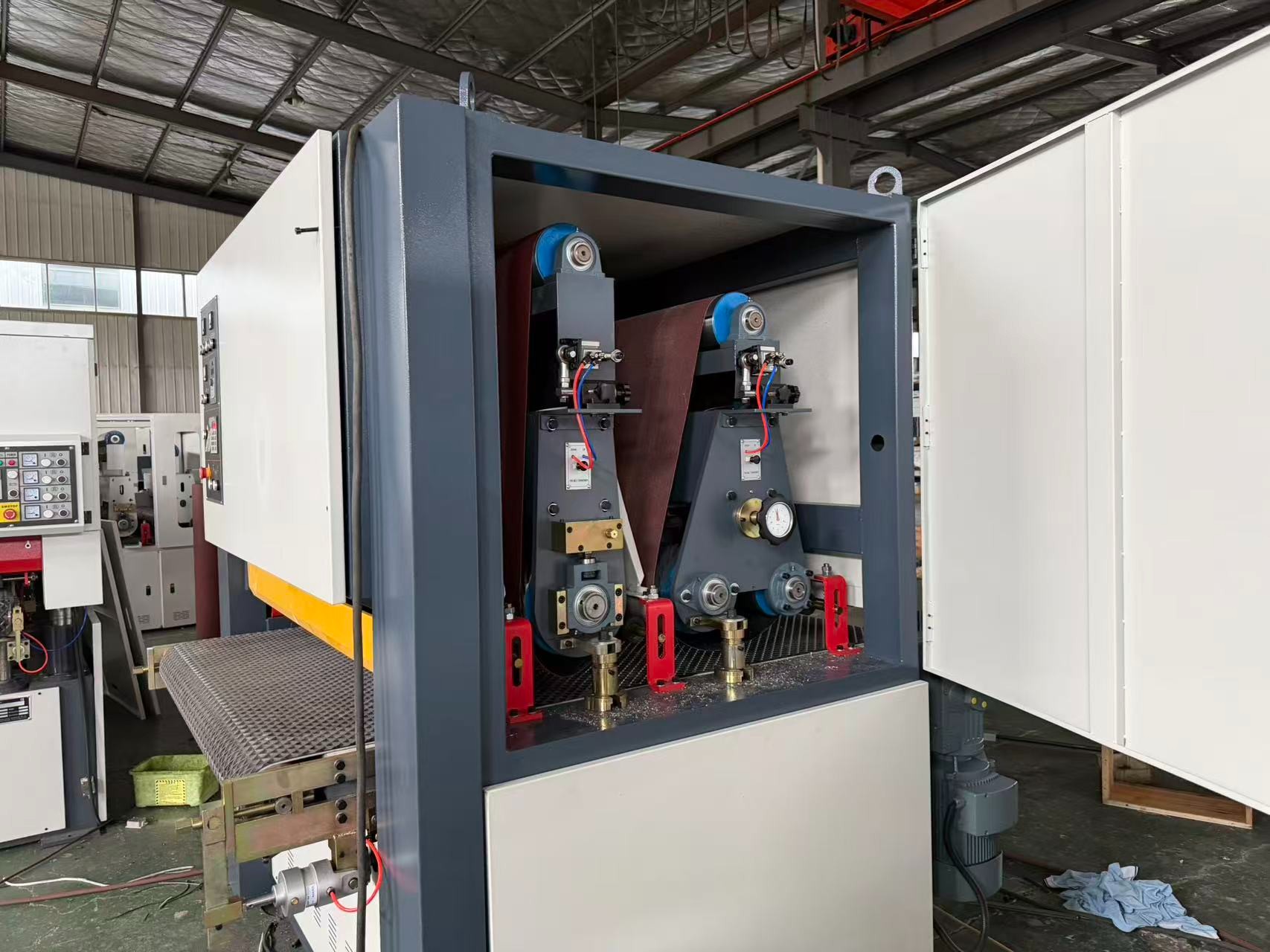

All sanding rollers adopt thick-walled seamless steel tubes

Bearings: High-speed imported bearings

Photoelectric Sensor: BANNER (USA)

Conveyor Belt: 9-layer laminated Best conveyor belt

Conveying Platform: Integral marble slab with 10cm thickness

Conveyor Motor: Anhui Hale Transmission

Main Motor: Energy-saving full copper winding motor from Weihai Daxing

Electrical Components: Genuine Chint brand

Machine Frame: Welded national standard steel, processed by CNC gantry milling

Sheet Metal Parts: Laser cutting and plastic spraying finish
